Common Filter Types and Functions in CIP Cleaning Systems

Apr. 01, 2025

Common Filter Types and Functions in CIP (Cleaning In Place) Cleaning Systems



Common Filter Types and Their Functions

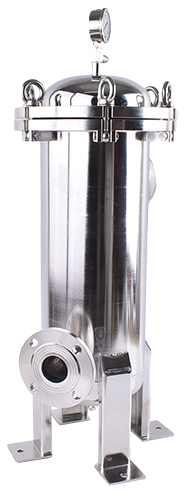

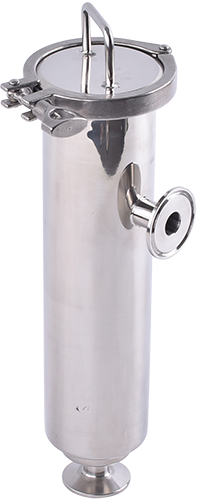

  1. Bag Filters

   ☞Function: Remove large particulate impurities from cleaning solutions     Common Filter Types and Functions in CIP Cleaning Systems

   ☞Features:

       - Filtration precision typically 1-100 microns

       - Reusable, easy to replace

       - Suitable for pre-filtration stages

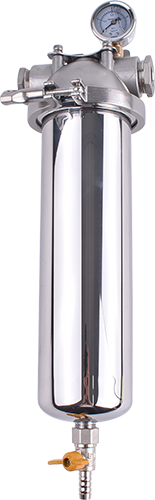

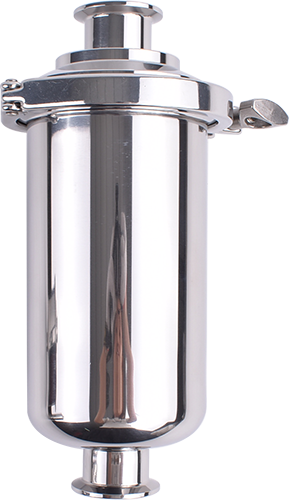

  2. Cartridge Filters

   ☞Function: Fine filtration to remove tiny particles

   ☞Features:

       - Filtration precision up to 0.1 micron

       - Available in surface filtration and depth filtration types

       - Commonly used in final filtration stages

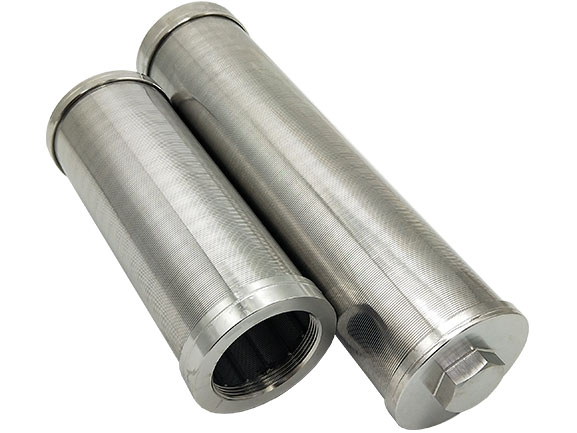

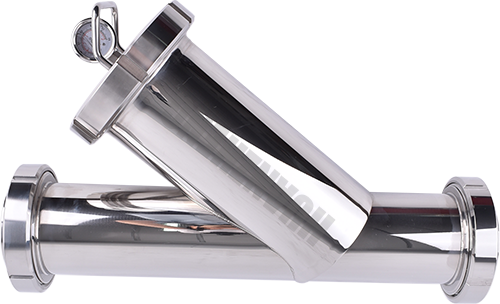

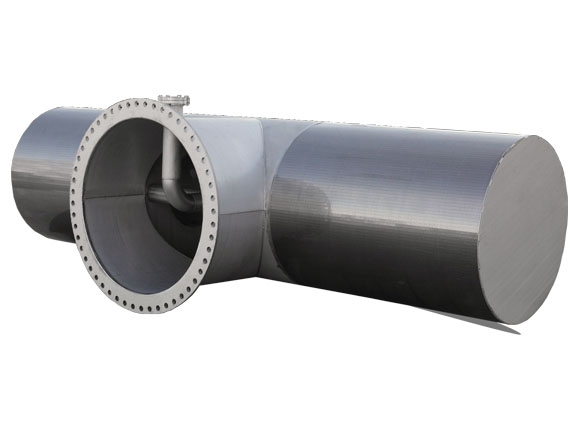

  3. Metal Mesh Filters

   ☞Function: Coarse filtration to protect downstream equipment

   ☞Features:

       - Made of stainless steel, corrosion-resistant

       - Cleanable and reusable

       - Filtration precision generally 50-500 microns


 Common Filter Types and Functions in CIP Cleaning Systems

  4. Activated Carbon Filters

   ☞Function: Remove organic matter, odors, and pigments

   ☞Features:

       - Used in applications requiring high water quality

       - Requires periodic replacement of activated carbon


  5. Membrane Filters

   ☞Function: Ultra-fine filtration for sterile cleaning

   ☞Features:

       - Filtration precision up to 0.01 micron

       - Used in pharmaceutical, food, and other industries

       - Higher cost


CIP System Workflow



  1. Pre-Rinse Stage

   ☞Purpose: Remove most loose contaminants

   ☞Process:

       - Uses ambient or recycled water

       - Typically lasts 3-5 minutes

       - Filter role: Metal mesh filters protect pumps and pipelines Common Filter Types and Functions in CIP Cleaning Systems


  2. Alkaline Wash Stage

   ☞Purpose: Remove organic contaminants like proteins and fats

   ☞Process:

       - Uses 1-2% sodium hydroxide solution

       - Temperature: 70-80°C

       - Circulation time: 10-20 minutes

       - Filter role: Bag filters remove dissolved particulate matter


  3. Intermediate Rinse Stage

   ☞Purpose: Rinse away residual alkaline solution

   ☞Process:

       - Uses ambient water

       - Duration: 5-10 minutes

       - Filter role: Cartridge filters ensure rinse water cleanliness


  4. Acid Wash Stage

    Purpose: Remove mineral deposits

    Process:

        - Uses 0.5-1% nitric or phosphoric acid

        - Temperature: 60-70°C              Common Filter Types and Functions in CIP Cleaning Systems

        - Circulation time: 10-15 minutes

        - Filter role: Prevents corrosion byproducts from entering the system


  5. Final Rinse Stage

   ☞Purpose: Thoroughly rinse the system

   ☞Process:

       - Uses treated or deionized water

       - Duration: 5-10 minutes

       - Filter role: Membrane filters ensure final water quality


  6. Sanitization Stage (Optional)

   ☞Purpose: Microbial control

   ☞Process:

       - Uses hot water (>85°C) or chemical sanitizers

       - Duration: 10-15 minutes

       - Filter role: Activated carbon filters remove residual sanitizers (if chemicals are used)


Key Roles of Filters in CIP Systems



  1. Equipment Protection: Prevent particle damage to pumps, valves, and nozzles

  2. Ensuring Cleaning Effectiveness: Maintain clean washing solutions to avoid recontamination

  3. Extending Cleaning Solution Lifespan: Filter out contaminants to prolong solution usability

  4. Maintaining System Pressure: Prevent pipeline clogging to ensure proper flow and pressure

  5. Quality Control: Ensure final rinse water meets hygiene standards


Common Filter Types and Functions in CIP Cleaning Systems
